DC Brushless Gearmotors
Z_BLD brushless motors paired with precision gearheads to deliver high output torque at controlled low speeds. Choose parallel-shaft GN, right-angle GU, or L-type hollow-shaft configurations — all sharing the maintenance-free brushless motor platform.
Download brushless catalog
Three gearhead families.
Parallel shaft (GN)
Inline gearhead with output shaft parallel to motor shaft. Frame sizes 2GN / 3GN / 4GN / 5GN / 6GN matched to 60 / 70 / 80 / 90 / 104 mm motors. Compact in-line footprint.
Right angle (GU)
90-degree spiral-bevel / hypoid gearhead. Frame sizes 5GU / 6GU / 7GU. Solid output (RT), hollow output (RC), or L-type hollow-shaft (LC).
L-type (GNL / GUL)
Hollow-shaft variant for direct shaft-mount applications. 89% gearhead efficiency. Combines with 750 W frames to reach output torque up to 200 N·m.
Engineering details.
Bidirectional output
Output torque is consistent in either direction, matching the motor command without backlash penalty.
Ball-bearing supported
K = ball bearing on GN units; KB = ball bearing on GU units. Long mechanical service life under industrial loading.
High overhung load
Up to 1500 N permissible overhung load (6GU at 20 mm from shaft end); thrust load up to 300 N.
Wide ratio span
3:1 to 200:1 in standard ratios. Multiple ratios available within a single frame size for application flexibility.
Efficient gearing
81% efficiency at low ratios (3–9), 73% at mid ratios (12.5–18), 66% at higher ratios. L-type variants reach 89%.
Mounting brackets
Square flange face matched to motor frame (60–120 mm). Dedicated aluminum mounting brackets available for 80 mm and 90 mm frames.
Gearmotor data.
General specs
| Motor power range | 15 W to 750 W (Z_BLD platform) |
|---|---|
| Available gear ratios | 3, 3.6, 5, 6, 7.5, 9, 10, 12.5, 15, 18, 20, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180, 200 |
| Output speed range | 1 RPM (200:1 at 200 RPM input) up to 1000 RPM (3:1 at 3000 RPM input) |
| Permissible overhung load | Up to 1500 N (6GU at 20 mm from shaft end) |
| Permissible thrust load | Up to 300 N |
| Mounting | Square flange face 60–120 mm matched to motor frame; aluminum brackets available for 80 mm and 90 mm |
Output torque ceilings
Permissible output torque by gearhead family.
| Gearhead | Permissible output torque |
|---|---|
| 2GN (60 mm) | 3 N·m |
| 4GN (80 mm) | 8 N·m |
| 5GN (90 mm) | 10 N·m |
| 5GU (90 mm right-angle) | 20 N·m |
| 6GU (104 mm right-angle) | 40 N·m |
| 7GU L-type with 750 W motor | up to 200 N·m at 100:1 |
Bearing & output type codes
| K | Ball bearing (GN type) |
|---|---|
| KB | GU type ball bearing |
| LC | L-type hollow shaft |
| RC | Hollow spiral-bevel output |
| RT | Solid spiral-bevel output |
Combined model number.

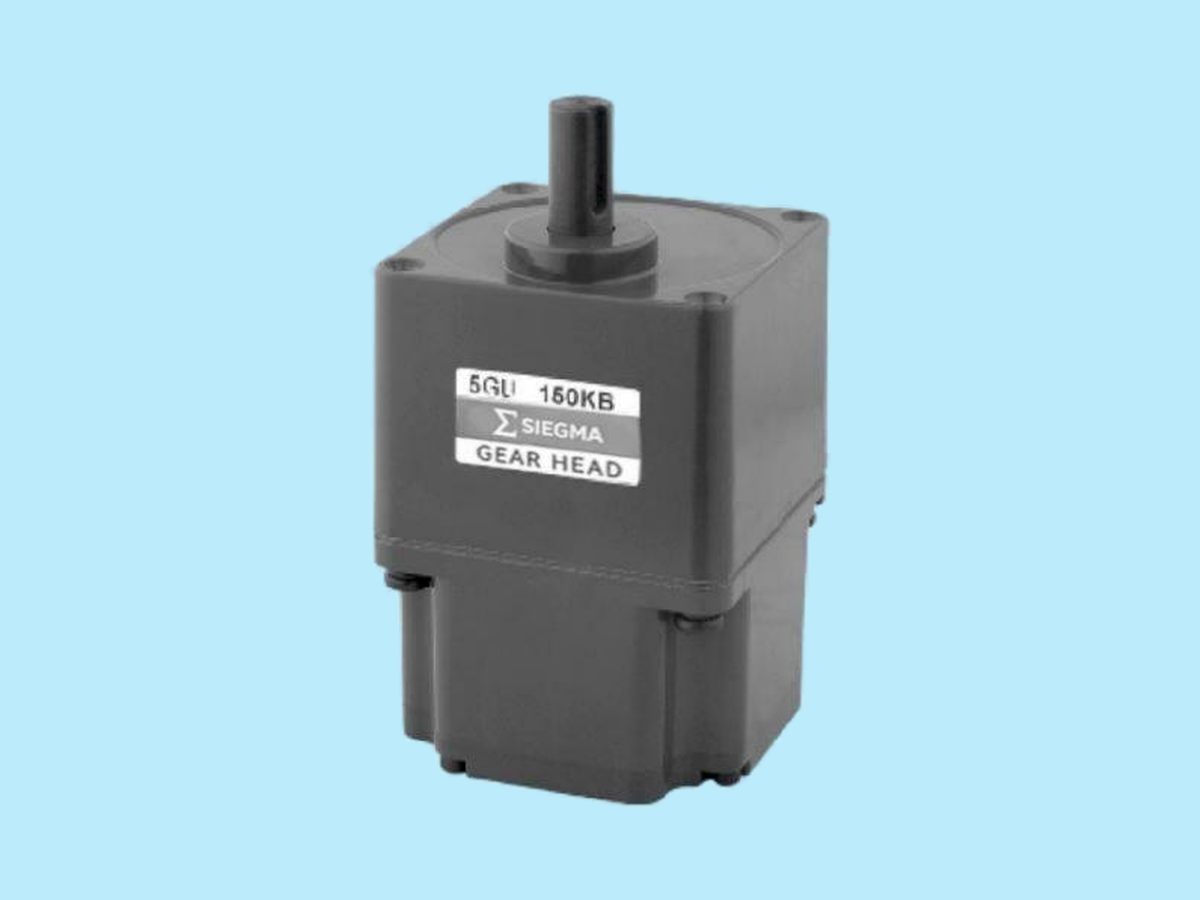

The full assembly is encoded as motor + gearhead. Example: Z5BLD120-220GU-30S paired with 5GU30K — a 90 mm 120 W brushless motor at 220 VAC with right-angle gearhead, 30:1 reduction, 3000 RPM input.
Combined motor + gearhead
Format: Z[frame]BLD[power]-[voltage][gearhead]-[speed]-[option]
| Motor section | Same as motor-only code (see DC Brushless Motors page) |
|---|---|
| Gearhead shaft type | GN = parallel-shaft · GU = right-angle · GNL = L-type GN · GUL = L-type GU |
| Speed code | 30S = 3000 RPM motor |
| Option | M = electromagnetic brake · BM = closed-loop with encoder |
Separate gearbox code
Format: [frame][type][ratio][bearing]
| Frame | 2 = 60 mm · 3 = 70 mm · 4 = 80 mm · 5 = 90 mm · 6 = 104 mm · 7 = 120 mm |
|---|---|
| Type | GN (parallel) · GU (right-angle) |
| Ratio | Numerical reduction (e.g. 50 = 50:1) |
| Bearing / output | K, KB, LC, RC, RT |
Where Z_BLD gearmotors fit.
Applications requiring controlled low-speed, high-torque output from a compact maintenance-free package. The 24 VDC variants are particularly well suited to AGV and battery-powered mobile equipment; the AC-input variants serve fixed industrial automation.
- Conveyor drives
- Indexing tables
- Packaging lines
- Mixers & agitators
- Pumps
- AGV / mobile robotics
- Medical & lab equipment
- Textile & printing

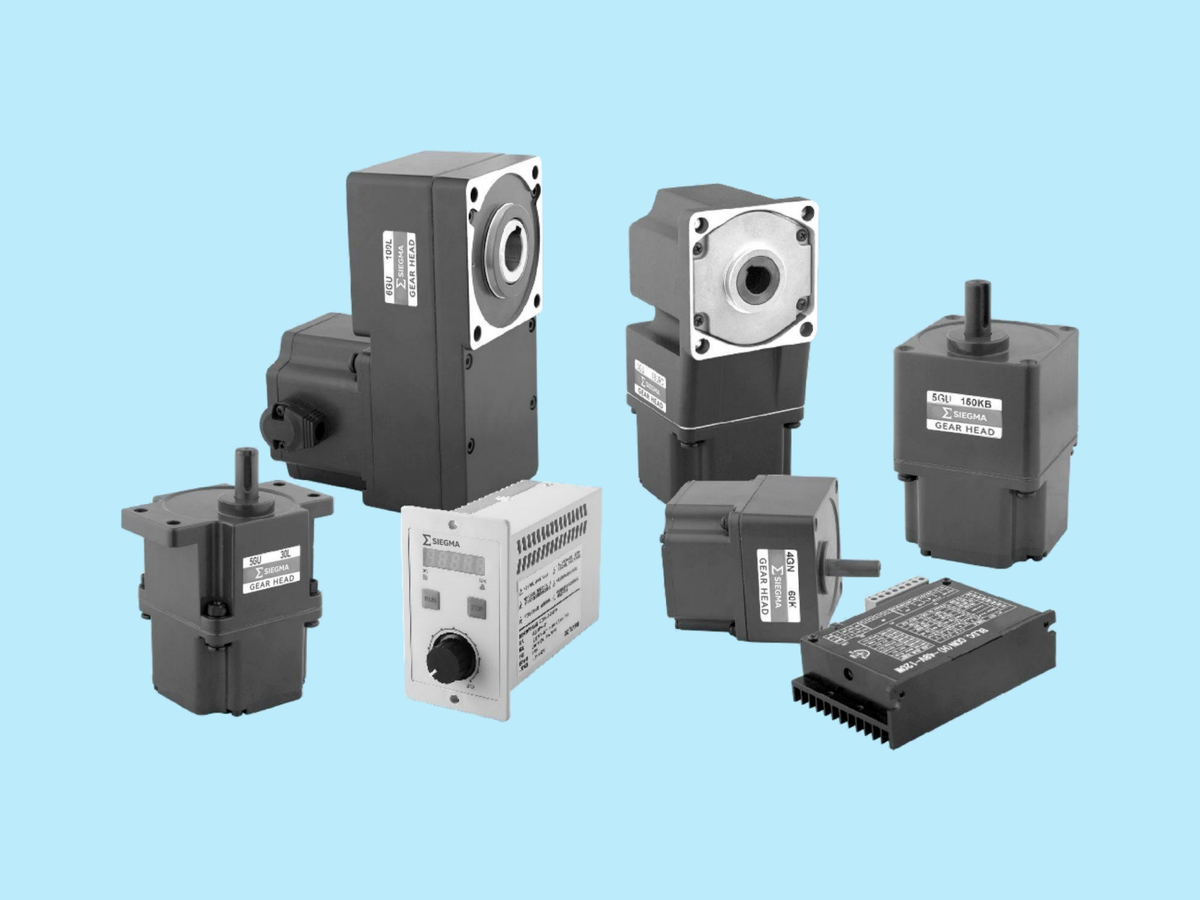

Brushless gearmotor imagery.
DC Brushless Motor & Gearmotor — Full catalog
Per-frame spec sheets, gearhead efficiency curves, output speed / torque selection charts, and dimensional drawings across the full Z_BLD line.
